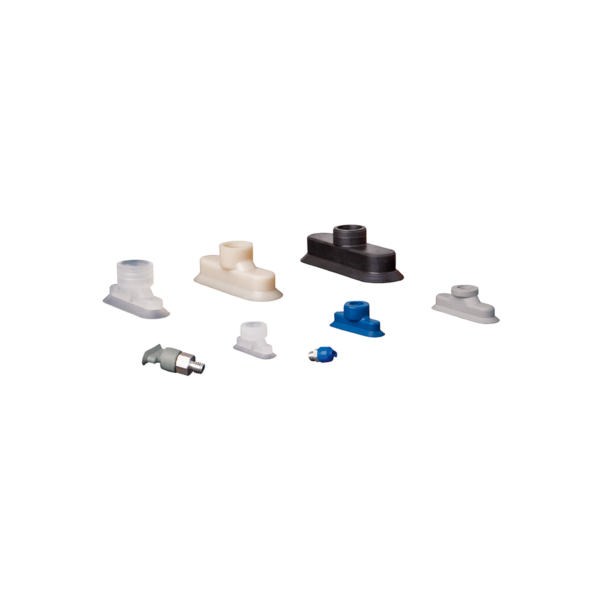

Ventouses à soufflet 0,5 ovale
Ventouses ovales à soufflet pour pièces allongées où
seulement un petit espace est disponible (ex : rails, profilés,
tubes, boulons) . Taille 100x35mm renforcée par des inserts
métalliques. Connexion par about.
Avantages
• Augmentation significative de la force d’aspiration
comparé aux ventouses rondes de la même largeur
• Soufflet souple pour une bonne adhésion aux produits
incurvés.
• Les soufflets aident à empêcher la déformation du
produit
• Remplacement avantageux des joints usés
Options disponibles :

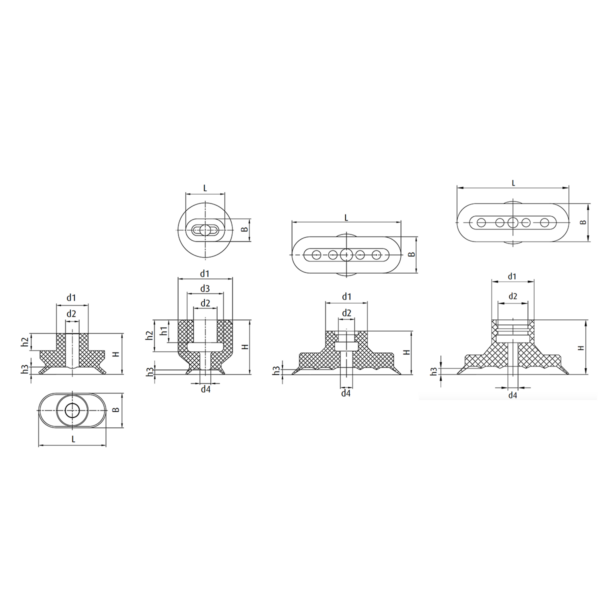

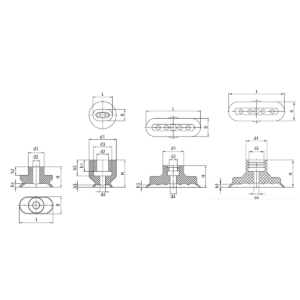

Référence | L [mm] | B [mm] | Course | Matière | Description | Schéma | Prix HT | Quantité | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|
| 132.4x2.001.1 | 5.0 | 2.7 | 0.5 | NBR (1) | Raccords M3 mâle : 270.011 |  | 1000000000 kg | |||
| 132.4x2.031.1 | 7.5 | 3.8 | 0.5 | NBR (1) | | 0,005000 kg | ||||
| 132.7x4.002.1 | 4.3 | 2.5 | 0.8 | NBR (1) | Raccords M3 mâle : 270.025 | | 1000000000 kg | |||
| 132.7x4.034.1 | 7.5 | 4.0 | 0.8 | NBR (1) | | 0,005000 kg | ||||
| 132.12x4.004.1 | 12.0 | 4.0 | 0.5 | NBR (1) |
 | | 0,005000 kg | |||
| 132.15x5.008.1 | 15.0 | 5.0 | 1.0 | NBR (1) |
| | 0,005000 kg | |||
| 132.18x6.012.1 | 18.0 | 6.0 | 1.0 | NBR (1) |
| | 1000000000 kg | |||
| 132.24x8.016.1 | 24.0 | 8.0 | 1.0 | NBR (1) |
| | 0,010000 kg | |||
| 132.30x10.018.1 | 30.0 | 10.0 | 2.0 | NBR (1) |
| | 1000000000 kg | |||
| 132.36x12.019.1 | 36.0 | 12.0 | 2.0 | NBR (1) |
| | 1000000000 kg | |||
| 132.45x15.020.1 | 44.0 | 15.0 | 3.0 | NBR (1) | | 0,030000 kg | ||||
| 132.60x20.022.1 | 60.0 | 20.0 | 3.0 | NBR (1) | | 1000000000 kg | ||||
| 132.75x25.023.1 | 75.0 | 25.0 | 3.0 | NBR (1) | | 1000000000 kg | ||||
| 132.100x35.26.1 | 100.0 | 35.0 | 3.0 | NBR (1) | | 1000000000 kg | ||||
| 132.4x2.001.2 | 5.0 | 2.7 | 0.5 | Silicone (2) | Raccords M3 mâle : 270.011 | | 1000000000 kg | |||
| 132.4x2.031.2 | 7.5 | 3.8 | 0.5 | Silicone (2) | | 1000000000 kg | ||||
| 132.7x4.002.2 | 4.3 | 2.5 | 0.8 | Silicone (2) | Raccords M3 mâle : 270.025 | | 1000000000 kg | |||
| 132.7x4.034.2 | 7.5 | 4.0 | 0.8 | Silicone (2) | | 1000000000 kg | ||||
| 132.12x4.004.2 | 12.0 | 4.0 | 0.5 | Silicone (2) |
| | 0,005000 kg | |||
| 132.15x5.008.2 | 15.0 | 5.0 | 1.0 | Silicone (2) |
| | 0,005000 kg | |||
| 132.18x6.012.2 | 18.0 | 6.0 | 1.0 | Silicone (2) |
| | 1000000000 kg | |||
| 132.24x8.016.2 | 24.0 | 8.0 | 1.0 | Silicone (2) |
| | 1000000000 kg | |||
| 132.30x10.018.2 | 30.0 | 10.0 | 2.0 | Silicone (2) |
| | 1000000000 kg | |||
| 132.36x12.019.2 | 36.0 | 12.0 | 2.0 | Silicone (2) |
| | 1000000000 kg | |||
| 132.45x15.020.2 | 44.0 | 15.0 | 3.0 | Silicone (2) | | 1000000000 kg | ||||
| 132.60x20.022.2 | 60.0 | 20.0 | 3.0 | Silicone (2) | | 1000000000 kg | ||||
| 132.75x25.023.2 | 75.0 | 25.0 | 3.0 | Silicone (2) | | 1000000000 kg | ||||
| 132.4x2.001.5 | 5.0 | 2.7 | 0.5 | Polyurethane (5) | Raccords M3 mâle : 270.011 | | 1000000000 kg | |||
| 132.4x2.031.5 | 7.5 | 3.8 | 0.5 | Polyurethane (5) | | 1000000000 kg | ||||
| 132.12x4.004.5 | 12.0 | 4.0 | 0.5 | Polyurethane (5) |
| | 1000000000 kg | |||
| 132.15x5.008.5 | 15.0 | 5.0 | 1.0 | Polyurethane (5) |
| | 1000000000 kg | |||
| 132.18x6.012.5 | 18.0 | 6.0 | 1.0 | Polyurethane (5) |
| | 1000000000 kg | |||
| 132.24x8.016.5 | 24.0 | 8.0 | 1.0 | Polyurethane (5) |
| | 1000000000 kg | |||
| 132.30x10.018.5 | 30.0 | 10.0 | 2.0 | Polyurethane (5) |
| | 1000000000 kg | |||
| 132.36x12.019.5 | 36.0 | 12.0 | 2.0 | Polyurethane (5) |
| | 1000000000 kg | |||
| 132.45x15.020.5 | 44.0 | 15.0 | 3.0 | Polyurethane (5) | | 1000000000 kg | ||||
| 132.60x20.022.5 | 60.0 | 20.0 | 3.0 | Polyurethane (5) | | 1000000000 kg |
